Cab

Comfort Zone - See your world without ever looking back

Operator comfort was a top priority in the Nitro 7000 Series, and the Premium SprayView cabs prove it.

When you settle into the active Grammer Evolution suede leather high-back adjustable seat with heating and cooling, you’ll appreciate how quiet it is in the air-ride cab, with the engine noise isolated out behind the tank. With the comfort of the air-ride seat and having each control right at your fingertips with the multi-function joystick, armrest command centre, and Miller Systems Monitor, your long days will seem shorter.

Sight lines are superior – you’ll see each and every boom tip without straining, as well as your front tyres while entering crop rows.

Other features of the pressurised heated and air-conditioned cab include active charcoal filtration with an in-cab secondary filter, an instructional seat, auxiliary power outlets, a tilting and telescoping steering column, and a windshield wiper with washer.

Suspension

Smooth operator

With a 50/50 weight distribution and the Miller exclusive four-wheel independent Hydra-Link suspension, you will appreciate the smooth ride and minimum soil compaction. With all four wheels planted firmly on the ground, dropping a wheel in a mud hole and 'free-wheeling' is left to the competition as you pull through the most challenging field conditions with ease. Reduce stress and fatigue on the machine and the operator, and ensure a stable, smooth ride for the boom and precise tip-to-target applications.

Engine

Rear engine for outstanding weight distribution

The Nitro 7000 series sprayers are powered by our own proven, reliable FPT® Tier 2 turbo diesel engines. Powerful, efficient FPT Tier 2 engines provide not just power, but peace of mind.

Located behind the engine away from dirt and debris is the large “Single Pass” cooling system designed to allow for more efficient and cooler air flow through all four cores. This means the ambient temperature of the air passing through each core is the same, resulting in substantially better cooling capabilities.

Drive System

Get power to the ground – where you need it – for the least amount of fuel.

Horsepower is one thing, but getting it effectively to the ground, where you need it, is another. That’s why the Nitro 7000 Series uses a revolutionary drive system to do just that.

The new Miller Nitro 7000 series features an innovative hydrostatic Danfoss pump system with electronically controlled variable displacement piston drive motors and seamlessly integrated Fairfield Torque-Hub® planetary final drives for the optimum drive performance.

New full-time traction control
Each wheel motor has its own speed sensor in constant communication with the electronic controller, sensing potential wheel slippage and preventing the wheels from turning faster or spinning out, ensuring superior traction and sprayer control, even in challenging field conditions such as mud or soft ground.

4 programmable speed ranges
The operator is able to set 4 pre-programmed customised speed ranges, with each allowing full travel of the joystick. Common examples may include a slow creep range up to 8km/h (5 mph) for manoeuvring in tight places, two working field ranges, and a road transport range.

Cruise control
The 7000 series Cruise Control maintains the set or commanded speed by adjusting the wheel motor displacement, automatically through simply setting the joystick position - no buttons to press.

Anti-stall feature
The Electronic Control System is integrated into the Engine Control Module to automatically change the hydrostatic control system in the event of a great drop in engine rpm, returning to normal operation when the sprayer is through the problem spot.

Integrated speed limiting
The new Integrated Speed Limiting (ISL) feature allows for hydrostatic braking without over-speeding the engine, while working in concert with active wet disc service brakes in each drive hub for outstanding stopping power and operator control.

Spraying System

A spray configuration that's right for you

The Nitro offers tank and boom options that are sure to increase your productivity.

Start with the stainless steel tank, ranging from 4500L to 6100L to suit your needs. A 565L rinse tank is electronically controlled from in the cab, with enough water to properly rinse the entire product system.

Our variable-speed Hypro® centrifugal pump operates only at the level it needs to deliver your target rate, saving horsepower and preserving pump life.

When it comes to the boom choices, the Miller nitro 7000 series has an extensive range available for all your requirements.

From the Miller Mono Beam boom in sizes from 27-36M, the Miller Steel Truss booms in 36 and 41.5M right through to the 48M Pommier Aluminium boom – the Miller Nitro has your needs covered.

The patented Miller exclusive Spray-Air system available in the 90, 100 and 120ft allows customers to get the maximum coverage for the lowest available carrier volumes maximizing their return on investment.

Precision Options

Precision options to maximise your productivity

Your new Nitro can be factory-equipped with ISO rate and Autoheight control that integrates to a wide variety of precision farming equipment to help you maximise your application efficiency.

With kits to suit Trimble, Raven, John Deere and a universal 3^rd party solution the Miller Nitro 7000 series offers unparalleled precision Farming integration.

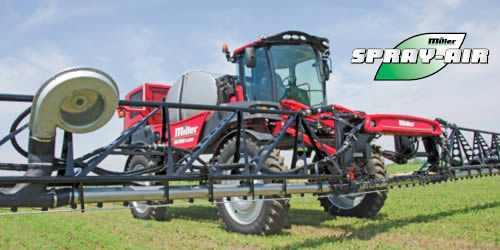

How the Miller Spray-Air technology works

One nozzle does it all!  Fine droplets for coverage...Coarse droplets to manage drift; control at your fingertips.

The Air Nozzles, spaced every 10” along the air boom, atomises the spray droplets using Dial-A-Drop™ technology. This creates the optimum-sized droplets that are not affected by speed and pressure changes, ensuring a uniform application over the entire field.

The Air Nozzle blasts the spray droplets deep into the crop canopy, ensuring complete top-to-bottom leaf surface coverage. No other application technology can measure up to the total plant coverage from the Spray-Air nozzle.

Because of the smaller controlled droplets and directed air blast, the Air Nozzle allows for a very efficient use of water, often in the range of 2 to 5 gallons per acre for herbicides, and generally from 5 to 10 GPA with fungicides.

Droplet Size Management

Spray-Air Technology - Enhanced Coverage, Superior Control, Maximum Efficiency

• Maximise Productivity. The superior plant coverage from the use of the Air Shear Nozzle enables you to use only the minimum amount of herbicide required, and no more.
• Lowest Water Volumes. Use the lowest possible carrier volumes for herbicide, desiccant, insecticide, and especially fungicide applications.
• Fungicide Applications That Work. Simply stated, the Spray-Air technology is proven to be the best method to apply fungicides for superior disease control! Benefit from dense canopy penetration and total plant coverage.
• Application Versatility. Three application methods to choose from:
  • Spray-Air Air Nozzle application to maximise coverage and efficiency
  • Conventional flat fan nozzles for higher volume applications over 10 gallons per acre
  • Use conventional nozzles + air blast from the Air Nozzle for classic Air Assist to maximise coverage in higher volume applications
• Environmental Stewardship. Spray-Air owners practice environmental stewardship by using only as much chemical and water as required, reducing soil and water carryover of crop protection products.

THE DROPLET CLASSIFICATION CHART IS AVAILABLE TO DOWNLOAD VIA THE LINK BELOW.
This chart format is more in line with other nozzle manufacturer charts, making your spray management decisions easier.

SPRAY-AIR DROPLET CHART

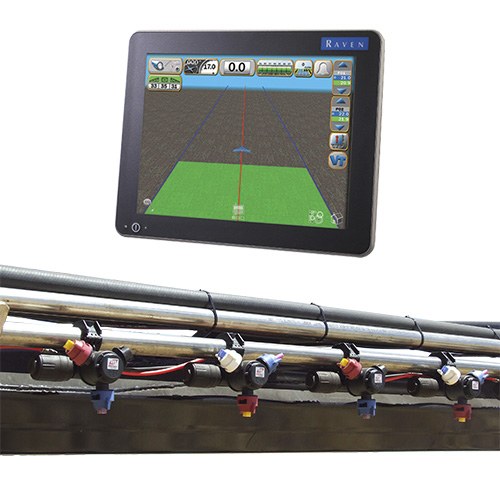

• Extends speed range while maintaining optimum droplet size.
• Cost effective and simple to use.
• Minimal operator intervention.
• Full coverage at low speed (no risk of skips).
• Air solenoids for rapid shut off and on at the nozzle. No drips.
• Recirculating boom lines for priming and flushing as standard.
• Flexibility with section widths.
• No electrical components on boom.
• Very low power requirement.
• Exceptional coverage in heavy and tall stubble and on fine grass weeds.

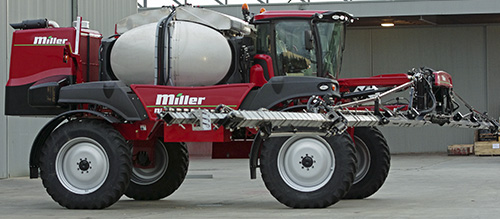

• Up to 3 Direct Chemical Injection units on one machine, allowing easy switching between fields and applications.
• No pre-mixing, tank mixing, cross contamination or clean out.
• Powerful positive displacement pump which injects on the pressure side, closer to the boom, for faster response time to rate changes.
• Eliminates waste for more environmentally friendly practices.
• Reduced chemical exposure means additional operator safety.
• Adjust individual concentrations on the fly rather than spraying more or less of the entire mix.
• Flexibility with multiple chemical applications.
• Automatically flush Sidekick Pro pump with optional Rinse Assist.
